DADI A STRAPPO
Breakaway security nut
The hexagon driving head separates during installation, leaving the fastening body without conventional spanner flats.
- Dimensional range
- M6–M12
- Thread
- Metric · coarse pitch
- Configuration
- Breakaway security nut

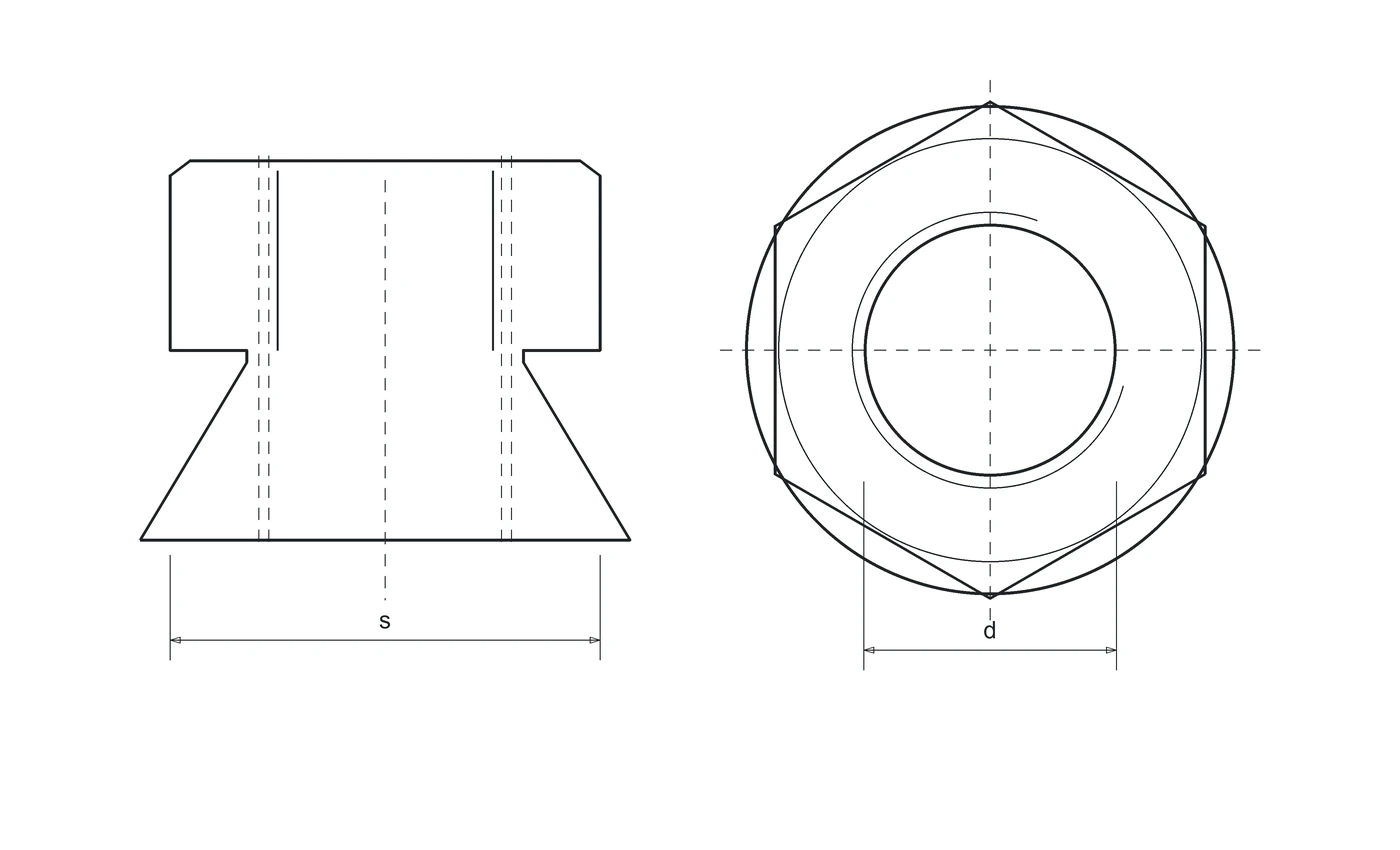

Technical drawing
- d
- nominal thread
- P
- pitch
- s
- width across flats
- m
- body height
- h
- overall height
- dc
- flange diameter. Only columns included in the table apply.
Variants and dimensional data
Reference sizes are listed in the table. Other diameters, pitches, materials and finishes are available on request, subject to an agreed supply specification.
Dimensions in mm. Identification drawing, not a manufacturing drawing.
| M | Pitch P | s | h |
|---|---|---|---|
| 6 | 1 | 10 | 9.5 |
| 8 | 1.25 | 13 | 12 |
| 10 | 1.5 | 17 | 15 |
| 12 | 1.75 | 19 | 16 |
Commercial design without an assigned DIN/UNI standard. Breakaway torque, preload and residual-body geometry must be confirmed for the supplied item. Head separation does not certify preload; plan maintenance or removal.
Table dimensions refer to the stated execution. DIN/UNI, polymer and special variants require verification of their own dimensions; they do not automatically inherit reference geometry, weight or performance.
Materials, classes, finishes and treatments
Executions are distinguished by reference, material, class and finish. DIN, ISO and UNI references do not imply dimensional equivalence or availability of every size in each material. Supply and batch documents require quotation confirmation.
| Execution reference | Material | Class / hardness | Documented finishes |
|---|---|---|---|
| Dado a strappo / shear nut | Stainless A2 | To be specified | To be specified |
| Dado a strappo / shear nut | Free-cutting steel | To be specified | To be specified |
“To be specified” is a requirement not established by this selection; it does not imply class 70/80, HV hardness or an automatic finish. Steel property classes do not apply to nylon/polyamide; PA6 and PA66 are distinguished only where stated. For nuts with non-metallic inserts, the material shown is the body material.
Documentation
Download Dueemme data sheet ↓| Document | Status |
|---|---|
| Declaration of conformity | Subject to order agreement |
| Material certificate | Subject to order agreement |
| EN 10204 2.2 test report | Subject to order agreement |
| EN 10204 3.1 inspection certificate | Subject to order agreement |
| Dimensional inspection report | Subject to order agreement |
| Coating report | Subject to order agreement |
| Other documentation | Subject to order agreement |
Batch documents are not automatically included: specify your requirements in the RFQ.
