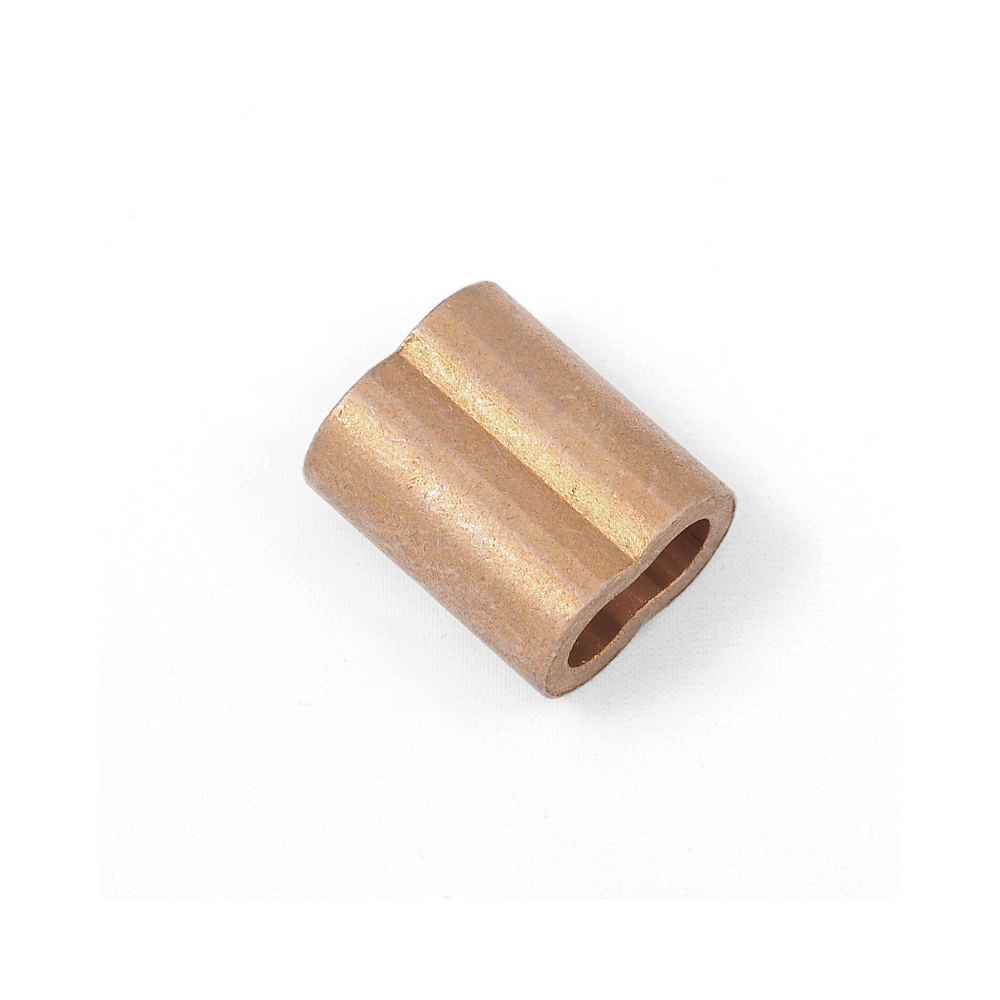

Copper ferrules for wire rope
Copper ferrules for wire-rope terminations. Select the size for the rope diameter and confirm the swaging procedure.
- Material
- Copper
Technical drawing
Dimensions in mm unless stated otherwise. Illustrative drawing, not to scale. Indicative source data; confirm the configuration in the enquiry.
Technical drawing
Rope: nominal wire-rope diameter; A: indicated internal ferrule width before swaging; L: ferrule length. Material: copper. The source does not specify tool, die, number of compressions or assembly strength: confirm these for the selected rope. Diameter alone does not establish a load rating.
Variants and dimensional data
| Rope (mm) | A (mm) | L (mm) | RFQ |
|---|---|---|---|
| 2 | 2,6 | 9,5 | |
| 2,5 | 2,8 | 10 | |
| 3 | 4,2 | 14 | |
| 4 | 5 | 15,5 | |
| 5 | 6,2 | 18 | |
| 6 | 6,8 | 22 | |
| 8 | 9,5 | 28 |
Dimensions apply before swaging. Verify compatibility with rope, tool and die.
Materials and finishes
- Material
- Copper
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
Request a quote
Copper ferrules for wire rope
