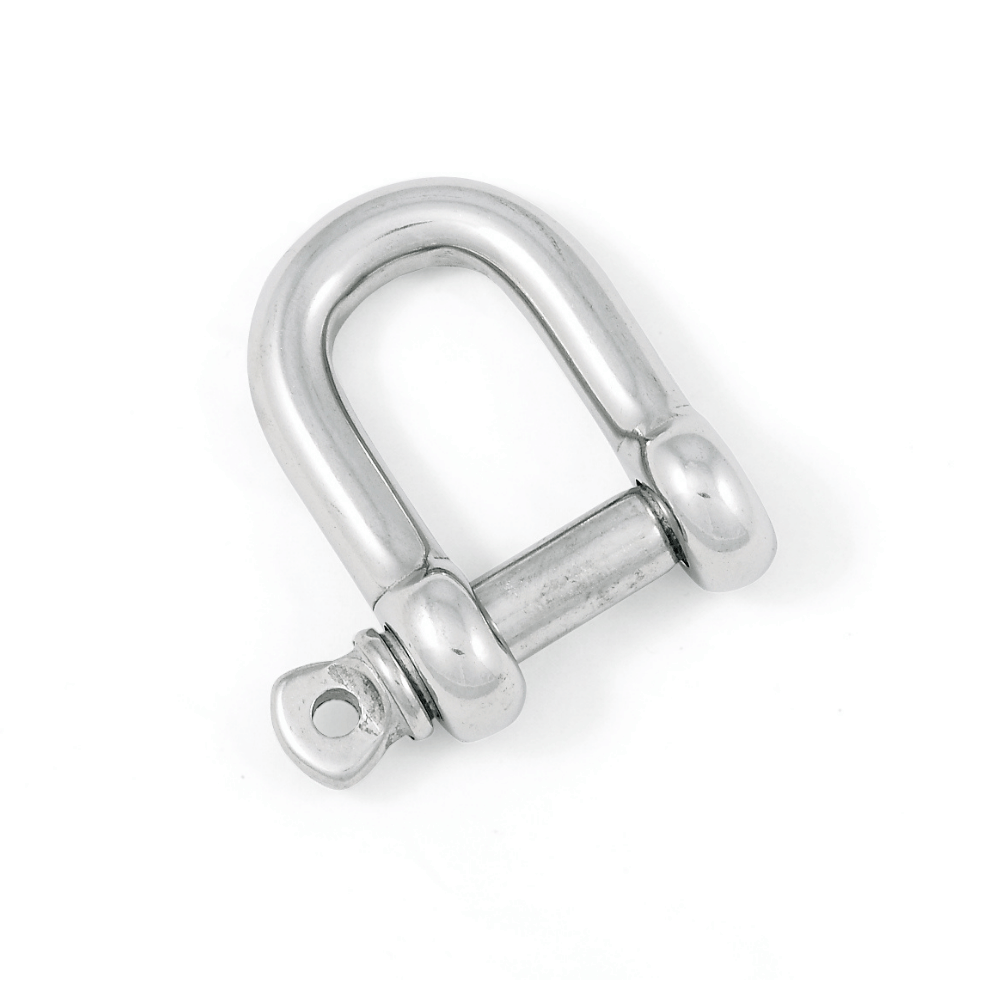

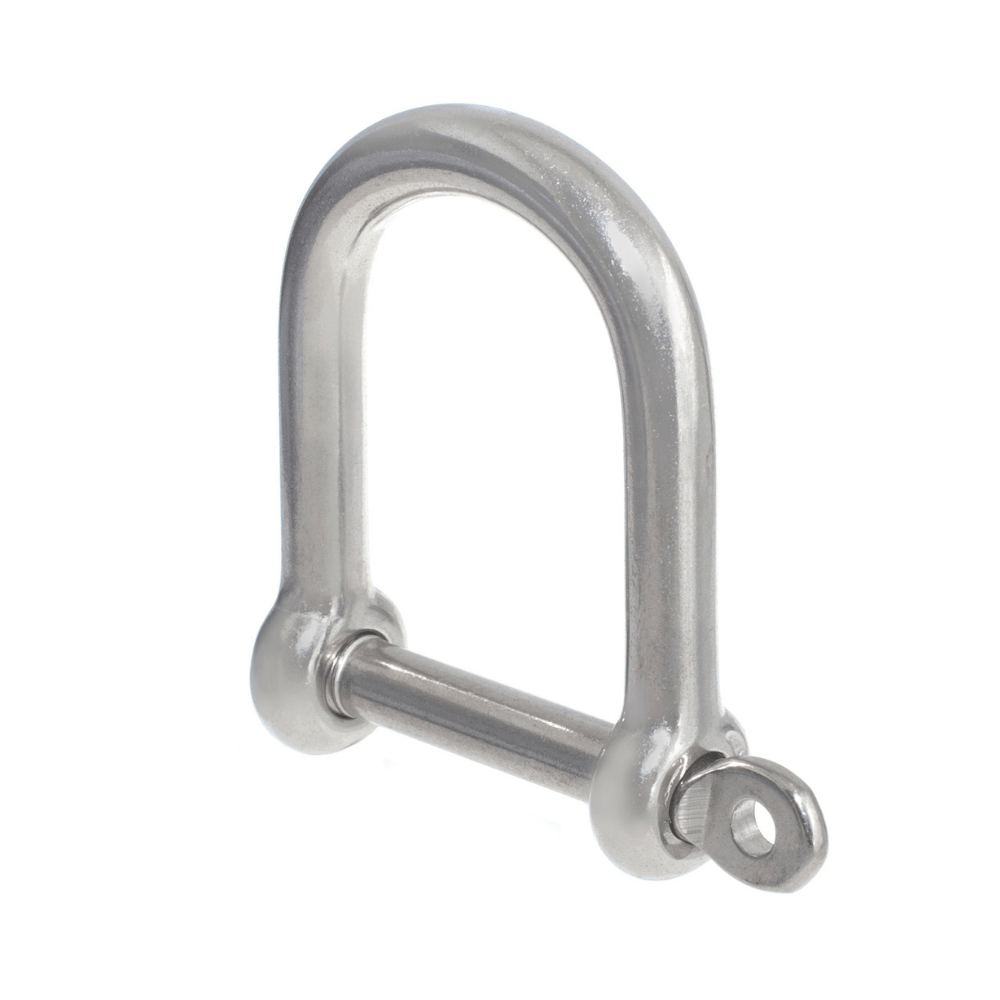

D-shackles
D-shackles for professional supply. Compare opening, connections and dimensions across the listed variants and include the installation requirements in your enquiry.
- Material
- AISI 316 / A4
Technical drawing and dimensions
Variants and dimensions — D-shackles
| D (mm) | A (mm) | L (mm) | B (mm) | Indicative catalogue working load (kg) | Breaking load (kg) | RFQ |
|---|---|---|---|---|---|---|
| 4 | 8 | 14 | 16 | 90 | 550 | |
| 5 | 10 | 17 | 20 | 100 | 900 | |
| 6 | 12 | 21 | 24 | 150 | 1300 | |
| 7 | 14 | 24 | 28 | 200 | 1800 | |
| 8 | 16 | 28 | 32 | 250 | 2400 | |
| 10 | 20 | 35 | 40 | 500 | 3800 | |
| 12 | 24 | 42 | 48 | 600 | 5550 | |
| 13 | 26 | 45 | 52 | 800 | 6550 | |
| 16 | 32 | 55 | 64 | 1100 | 7600 | |
| 19 | 38 | 66 | 76 | 1600 | 9950 | |
| 22 | 44 | 77 | 88 | 2500 | 13850 | |
| 25 | 50 | 87 | 100 | 3000 | 22800 |
Working load and breaking load are separate ratings. The values shown do not constitute lifting certification; verify the service conditions for the selected variant.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
