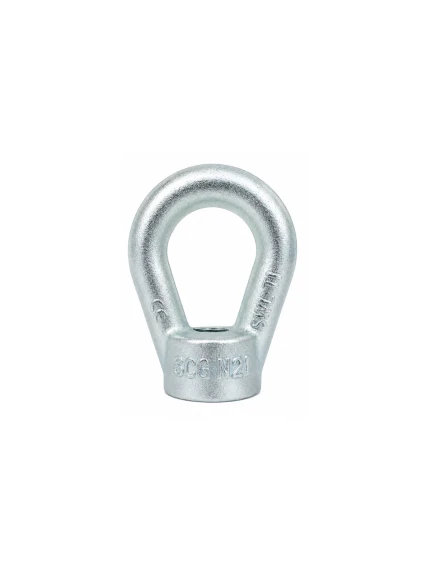

UNI 2948 elongated eye nut
UNI 2948 · Fe 430 B steel
Female-thread connection. Check the dimensions and documented operating conditions for the required variant.
Reference configuration: Carcano A057. No-reduction range adopted here: 0 / +80 °C.
- Type
- Female thread
- Standard / reference
- UNI 2948
- Material
- Fe 430 B steel
- Thread
- Metric
Technical drawing and dimension key
Dimension symbols match the table below. D identifies the Thread size column (nominal thread).
Illustrative technical drawing by Dueemme Sidol. Dimension symbols and reference geometry help you read the dimensional table. Always check the required variant and its applicable documentation. Drawing not to scale unless stated otherwise.
| Symbol | Definition | Unit / format |
|---|---|---|
| A | Internal eye width | mm |
| B | External eye width | mm |
| C | Base diameter | mm |
| D | Nominal thread size | M… |
| E | Base height | mm |
| F | Ring thickness in side view | mm |
| L | Height above seating face | mm |
| G | Neck width at the base in side view | mm |
Variants and dimensions
Dimension symbols refer to the technical drawing above. Dimensions in mm; weight in kg. N/D means the value is not documented. Catalogue inclusion does not imply stock availability.
| Thread size (D) | Pitch | Thread length L | Axial W.L.L. kg | Weight kg | Max. tightening torque Nm | A | B | C | E | F | G | L | RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8 | N/D | N/D | 80.0 | 0.07 | N/D | 18.0 | 36.0 | 20.0 | 8.5 | 8.0 | 19.0 | 36.0 | Request a quote → |
| M10 | N/D | N/D | 160.0 | 0.14 | N/D | 24.0 | 44.0 | 30.0 | 14.0 | 10.0 | 28.0 | 58.0 | Request a quote → |
| M12 | N/D | N/D | 250.0 | 0.26 | N/D | 30.0 | 56.0 | 34.0 | 16.0 | 13.0 | 32.0 | 72.0 | Request a quote → |
| M14 | N/D | N/D | 320.0 | 0.26 | N/D | 30.0 | 56.0 | 34.0 | 16.0 | 13.0 | 32.0 | 72.0 | Request a quote → |
| M16 | N/D | N/D | 400.0 | 0.43 | N/D | 36.0 | 68.0 | 40.0 | 20.0 | 16.0 | 38.0 | 86.0 | Request a quote → |
| M18 | N/D | N/D | 510.0 | 0.41 | N/D | 36.0 | 68.0 | 40.0 | 20.0 | 16.0 | 38.0 | 86.0 | Request a quote → |
| M20 | N/D | N/D | 630.0 | 0.59 | N/D | 42.0 | 80.0 | 48.0 | 24.0 | 19.0 | 45.0 | 100.0 | Request a quote → |
Materials and finishes
| Material | Finish |
|---|---|
| Fe 430 B steel | Zinc-plated / black finish |
Documentation
| Document | Availability |
|---|---|
| Operating instructions | Request for the selected variant |
| Technical data sheet / certification | Variant-specific documentation on request |
| CAD / 3D | Availability to be confirmed |
Instructions and reference documents for configuration A057
Key technical data
| Parameter | Value |
|---|---|
| Type | Female thread |
| Standard / reference | UNI 2948 |
| Material | Fe 430 B steel |
| Thread | Metric |
| Grade | N/D |
| Temperature | 0 / +80 °C |
| Swivelling / pivoting | No / no |
| W.L.L. | See the load conditions for each variant |
Load conditions
| Thread size | Configuration | Angle | W.L.L. kg |
|---|---|---|---|
| M8 | Single point, axial loading | 0° | 80.0 |
| M10 | Single point, axial loading | 0° | 160.0 |
| M12 | Single point, axial loading | 0° | 250.0 |
| M14 | Single point, axial loading | 0° | 320.0 |
| M16 | Single point, axial loading | 0° | 400.0 |
| M18 | Single point, axial loading | 0° | 510.0 |
| M20 | Single point, axial loading | 0° | 630.0 |
Reference configuration: Carcano A057. No-reduction range adopted here: 0 / +80 °C.
Ratings here apply to one point under axial 0° loading. No tightening torque is quantified in the dimensional table; request confirmation for the supply.
