DIN 103 · Tr thread
DIN 103 identifies the trapezoidal thread; the outer form and table dimensions belong to the stated technical selection. Tr 10 × 3 is excluded because the source flags its pitch as outside the DIN 103 series.
DIN 103 · Tr thread

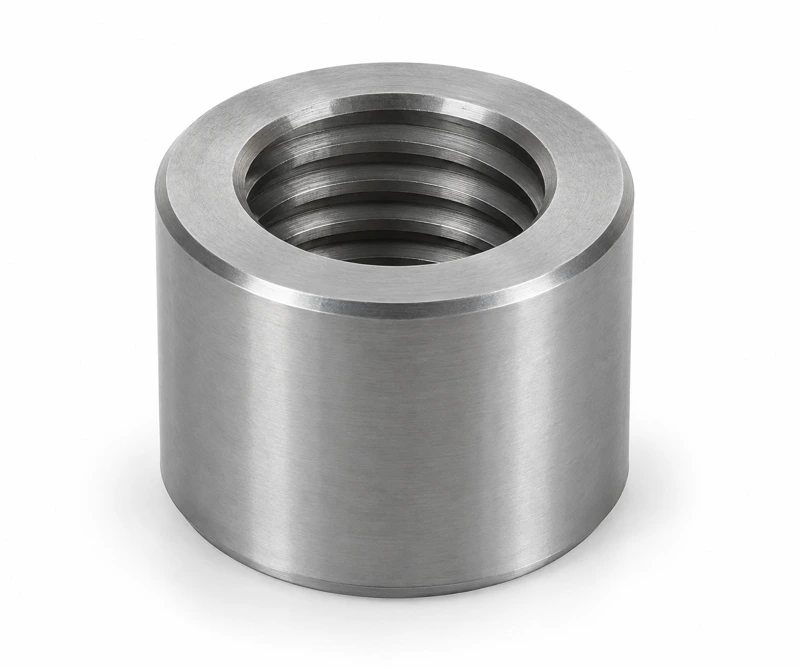

Round nut 1.5d with trapezoidal thread
A round body 1.5 times the nominal diameter in height, with a single-start trapezoidal thread. Mate with a screw having the same Tr designation.
- Dimensional range
- Tr 12 × 3–Tr 70 × 10
- Thread
- Trapezoidal Tr · single start · right hand
- Configuration
- Round nut 1.5d with trapezoidal thread

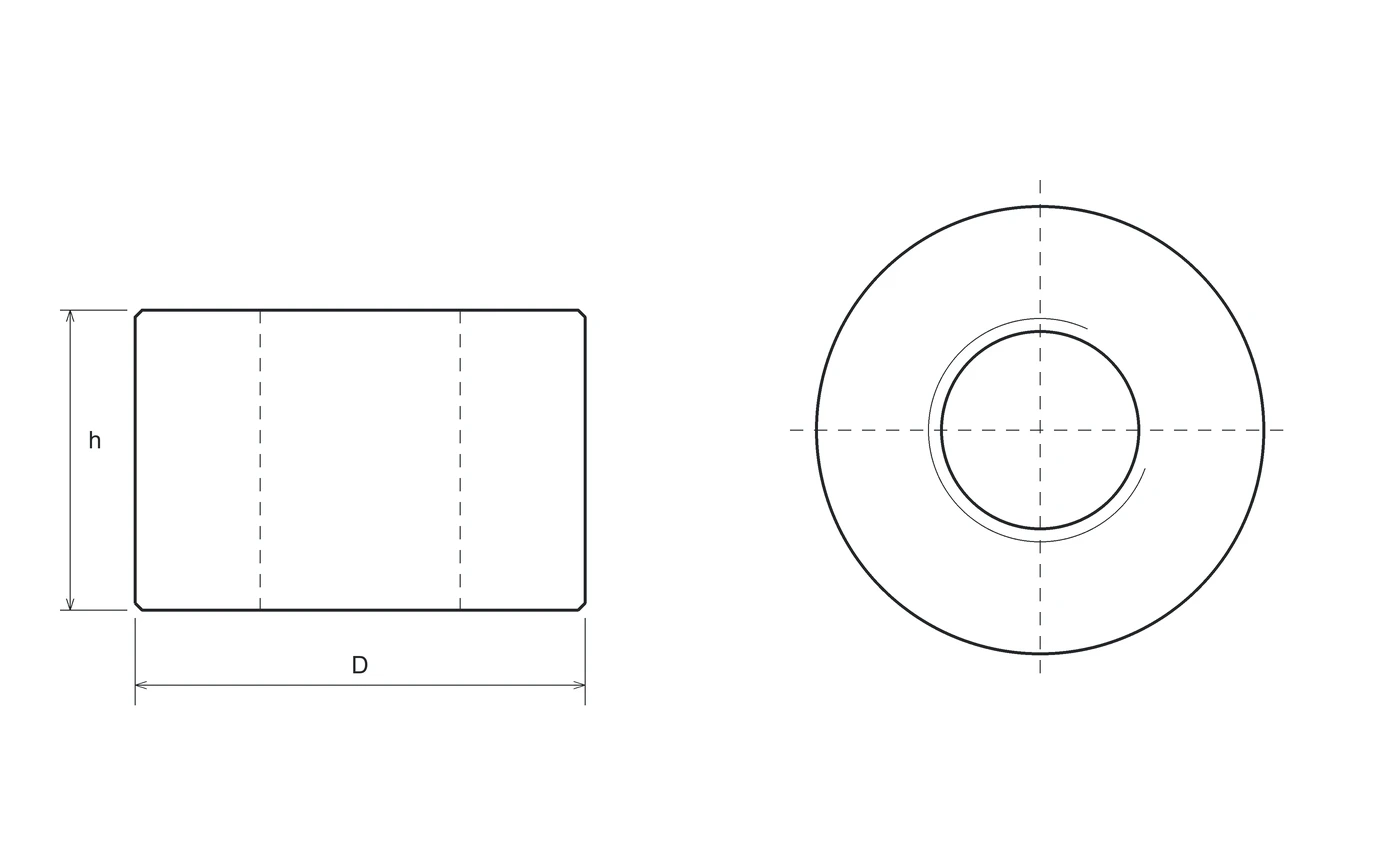

Technical drawing
- Tr
- trapezoidal thread
- d
- nominal diameter
- P
- pitch
- h
- height
- D
- outside diameter.
Variants and dimensional data
The table identifies the reference technical selection. The supply configuration is reviewed against the enquiry.
Dimensions in mm. Identification drawing, not a manufacturing drawing.
| d nominal Tr | Pitch P | h height | D outside h11 |
|---|---|---|---|
| 12 | 3 | 18.0 | 26 |
| 14 | 4 | 21.0 | 30 |
| 16 | 4 | 24.0 | 36 |
| 18 | 4 | 27.0 | 40 |
| 20 | 4 | 30.0 | 45 |
| 24 | 5 | 36.0 | 50 |
| 28 | 5 | 42.0 | 60 |
| 30 | 6 | 45.0 | 60 |
| 32 | 6 | 48.0 | 60 |
| 36 | 6 | 54.0 | 75 |
| 40 | 7 | 60.0 | 80 |
| 44 | 7 | 66.0 | 80 |
| 48 | 8 | 72.0 | 90 |
| 50 | 8 | 75.0 | 90 |
| 52 | 8 | 78.0 | 90 |
| 60 | 9 | 90.0 | 100 |
| 70 | 10 | 105.0 | 110 |
Tr threads are not interchangeable with M metric threads. Specify hand, clearance, lubrication and application. The documented steel selection is for manual adjustment or retention: do not automatically extend it to continuous-motion drives. Steel-on-steel pairing requires assessment of galling risk.
Table dimensions refer to the stated execution. DIN/UNI, polymer and special variants require verification of their own dimensions; they do not automatically inherit reference geometry, weight or performance.
Materials, classes, finishes and treatments
Other materials, property classes and finishes available on request.
State the required material, property class and finish in your enquiry. The configuration is defined and confirmed in the quotation.
Executions are distinguished by reference, material, class and finish. DIN, ISO and UNI references do not imply dimensional equivalence or availability of every size in each material. Supply and batch documents require quotation confirmation.
For this special execution, body material, any insert, class and treatment must be specified separately. Variants of geometrically similar products are not assigned automatically.
Documentation
Download Dueemme data sheet ↓| Document | Status |
|---|---|
| Declaration of conformity | Subject to order agreement |
| Material certificate | Subject to order agreement |
| EN 10204 2.2 test report | Subject to order agreement |
| EN 10204 3.1 inspection certificate | Subject to order agreement |
| Dimensional inspection report | Subject to order agreement |
| Coating report | Subject to order agreement |
| Other documentation | Subject to order agreement |
Batch documents are not automatically included: specify your requirements in the RFQ.
ISO, DIN and UNI: key differences
Enquire about this configuration
State your requirements: material, property class and finish will be assessed for your enquiry.
Other materials, property classes and finishes available on request. Each configuration is assessed against the enquiry specification.
The size you need, including custom specifications
Other diameters, lengths, materials and finishes can be assessed on request. For dedicated production, we agree geometry, requirements and minimum quantities with the customer.
Send your specification →
