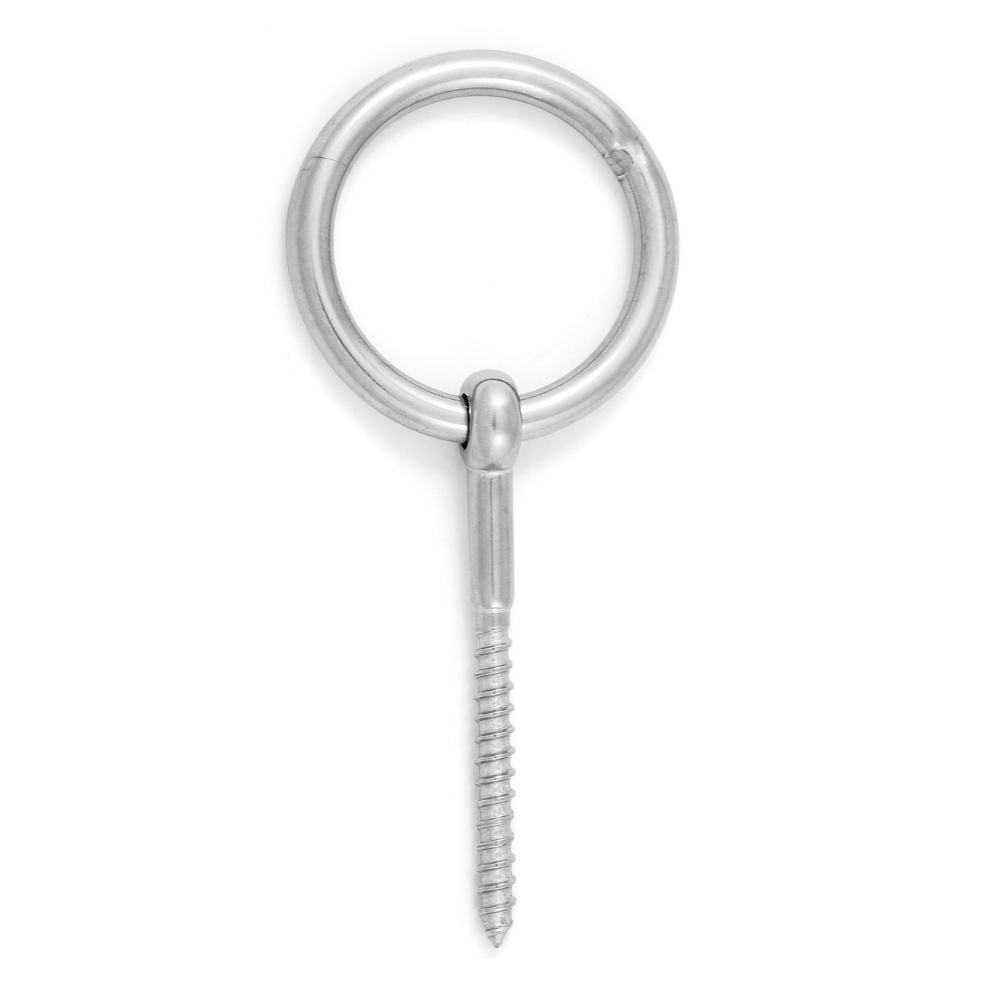

Wood screws with ring
Wood screws with ring. AISI 316 / A4. Check configuration dimensions before selecting the fixing hardware.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale. Check the delivered product before drilling.
Technical drawing
D1: ring section diameter; H: indicated shank length, excluding ring; T: threaded length; D2: shank diameter; L: ring inside diameter. The current sheet gives no load ratings; older catalogue breaking loads are not presented as current data.
Variants and dimensional data
| D1 (mm) | H (mm) | T (mm) | D2 (mm) | L (mm) | RFQ |
|---|---|---|---|---|---|
| 6 | 60 | 40 | 6 | 30 | |
| 8 | 80 | 40 | 8 | 50 |
Dimensions refer to the drawing symbols. Confirm material, dimensions and application in the enquiry.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
Request a quote
Wood screws with ring
