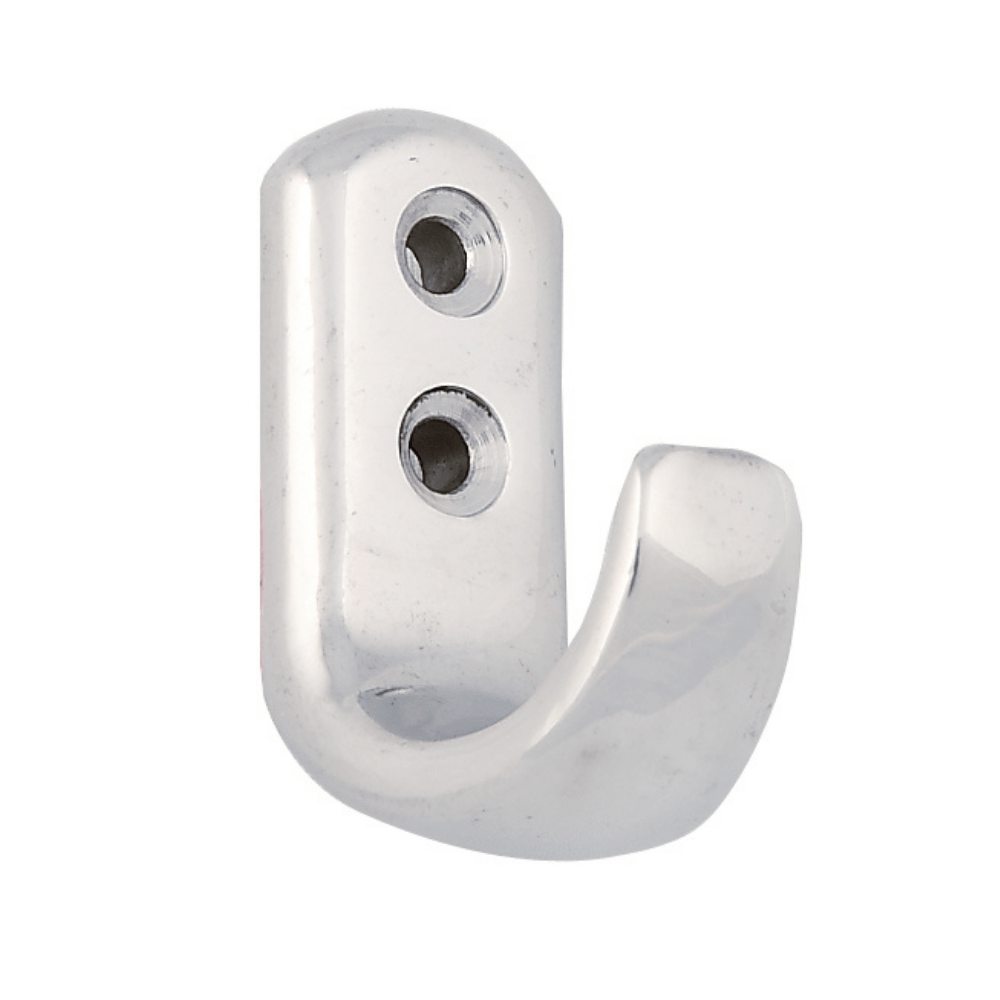

Two-hole utility hooks
Two-hole utility hooks for professional supply. Compare geometry and installation dimensions across the listed variants and include the installation requirements in your enquiry.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale; check dimensions on the delivered product before drilling. The source does not specify overall height or hole centre distance.
- P
- overall projection
- W
- base width
- H1
- hook-tip height above bottom
- d
- hole diameter
- s
- countersink diameter
Variants and dimensional data
| P (mm) | W (mm) | H1 (mm) | d (mm) | s (mm) | RFQ |
|---|---|---|---|---|---|
| 31 | 16,5 | 16 | 3,2 | 6 |
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
