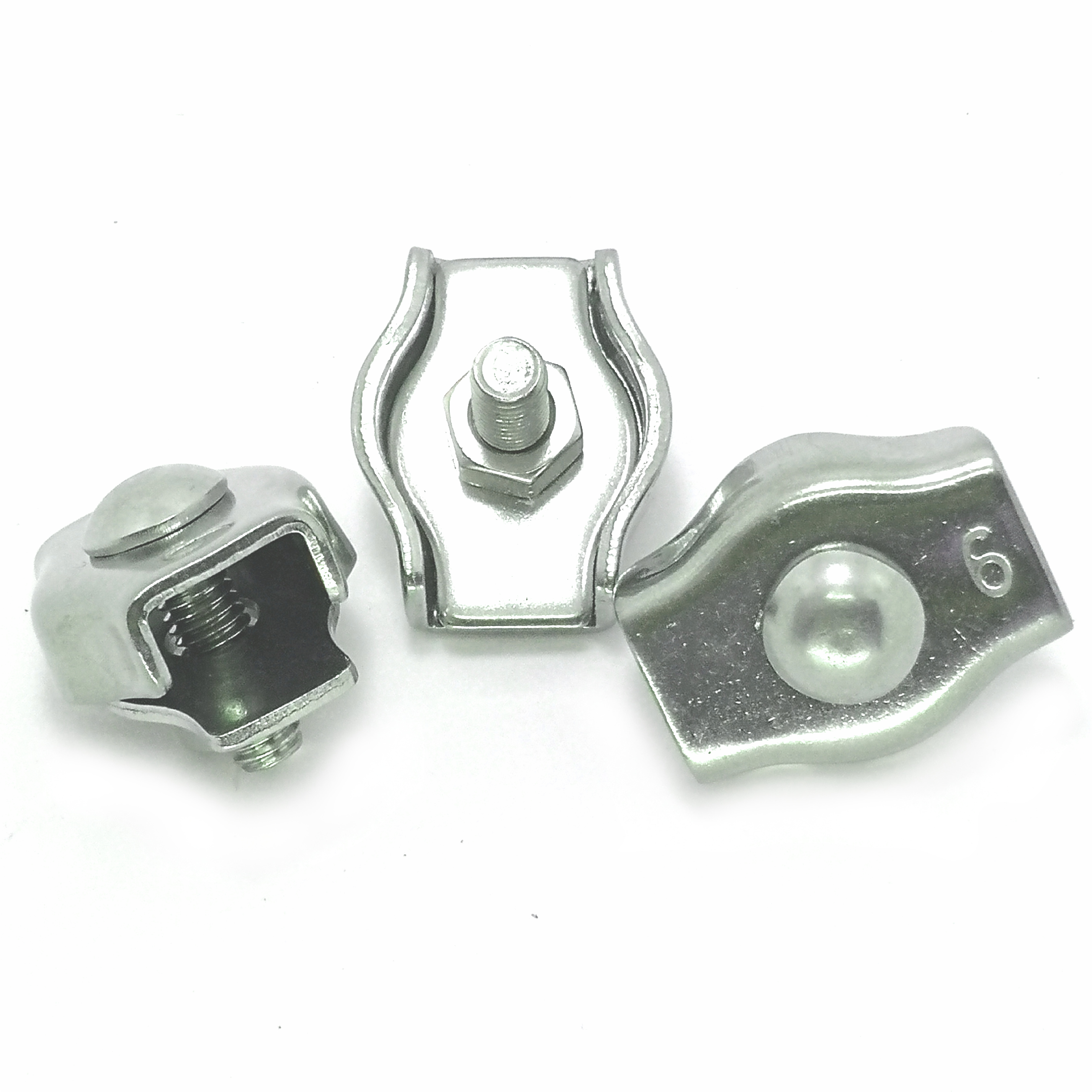

Simplex wire rope clips
Simplex wire rope clips in AISI 316 stainless steel. Compare rope diameter, dimensions and configurations in the table.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm, except metric thread M. Illustrative drawing, not to scale. Confirm dimensions and configuration in the enquiry.
Technical drawing
B: body width; L: body length; D: metric thread; H: overall side-view projection, including the stud tip. Single-stud configuration. Not for lifting or fall-protection systems.
Variants and dimensional data
| Rope Ø (mm) | B (mm) | D thread | H (mm) | L (mm) | RFQ |
|---|---|---|---|---|---|
| 2 | 12 | M4 | 14 | 15 | |
| 3 | 14 | M4 | 14 | 18 | |
| 4 | 18 | M5 | 19 | 20 | |
| 5 | 20 | M5 | 19 | 25 | |
| 6 | 24 | M6 | 23 | 25 | |
| 8 | 30 | M8 | 27 | 25 |
Indicative dimensions, subject to production variations. The table does not establish a load rating for the clamp or assembly.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
Request a quote
