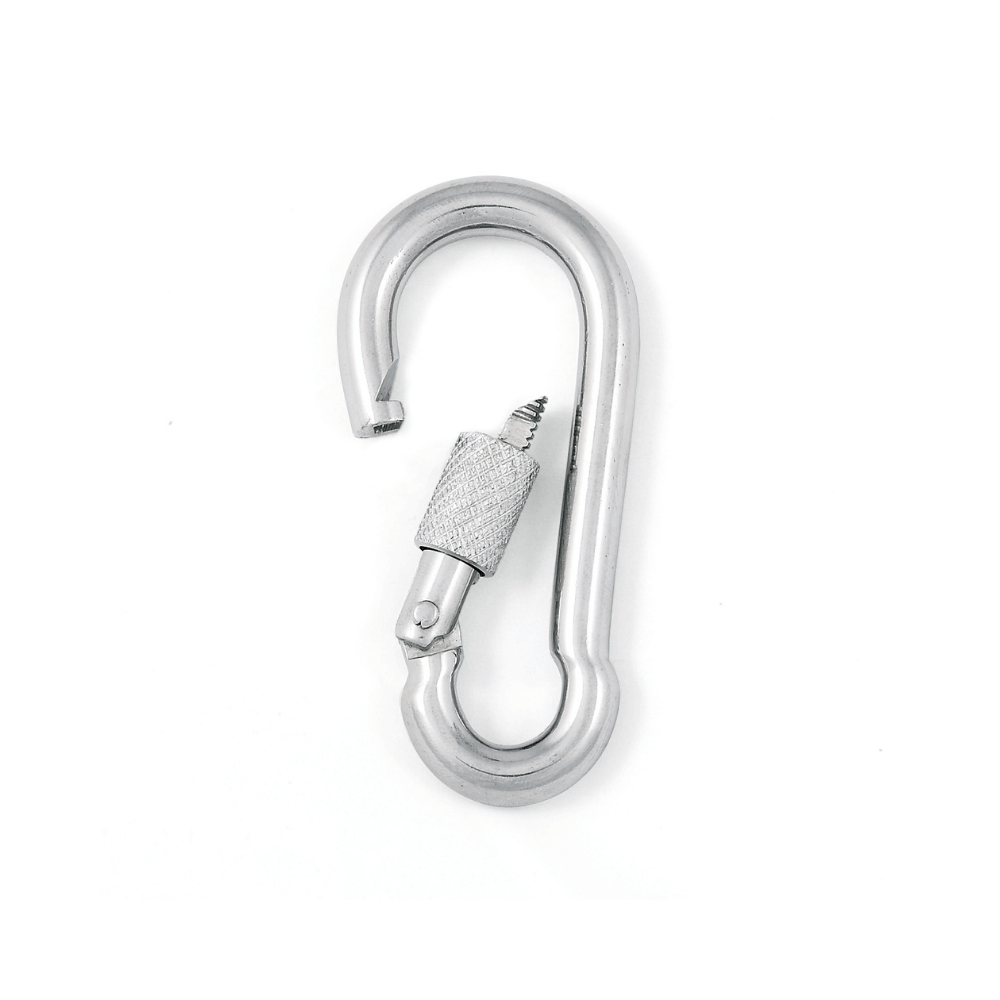

Screw-lock snap hooks
Screw-lock snap hooks for professional supply. Compare opening, connections and dimensions across the listed variants and include the installation requirements in your enquiry.
- Material
- AISI 316 / A4
- Spring
- AISI 304
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale. Characteristics are indicative and may vary between batches; verify the requested variant.
- D
- section diameter
- L
- overall length
- A
- inside eye opening
- E
- clear gate or bolt opening
Variants and dimensional data
| D (mm) | L (mm) | A (mm) | E (mm) | Indicative catalogue working load (kg) | Breaking load (kg) | RFQ |
|---|---|---|---|---|---|---|
| 5 | 50 | 8 | 7 | 50 | 300 | |
| 6 | 60 | 9 | 8 | 70 | 500 | |
| 8 | 80 | 12 | 9 | 125 | 750 | |
| 10 | 100 | 15 | 12 | 200 | 1200 | |
| 11 | 120 | 18 | 16 | 250 | 1650 |
Materials and finishes
- Material
- AISI 316 / A4
- Spring
- AISI 304
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Working load and breaking load are separate ratings. These accessories are not intended for lifting equipment, slings, load-support devices or fall-protection systems. Verify the indicative values for the selected variant and service conditions.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
