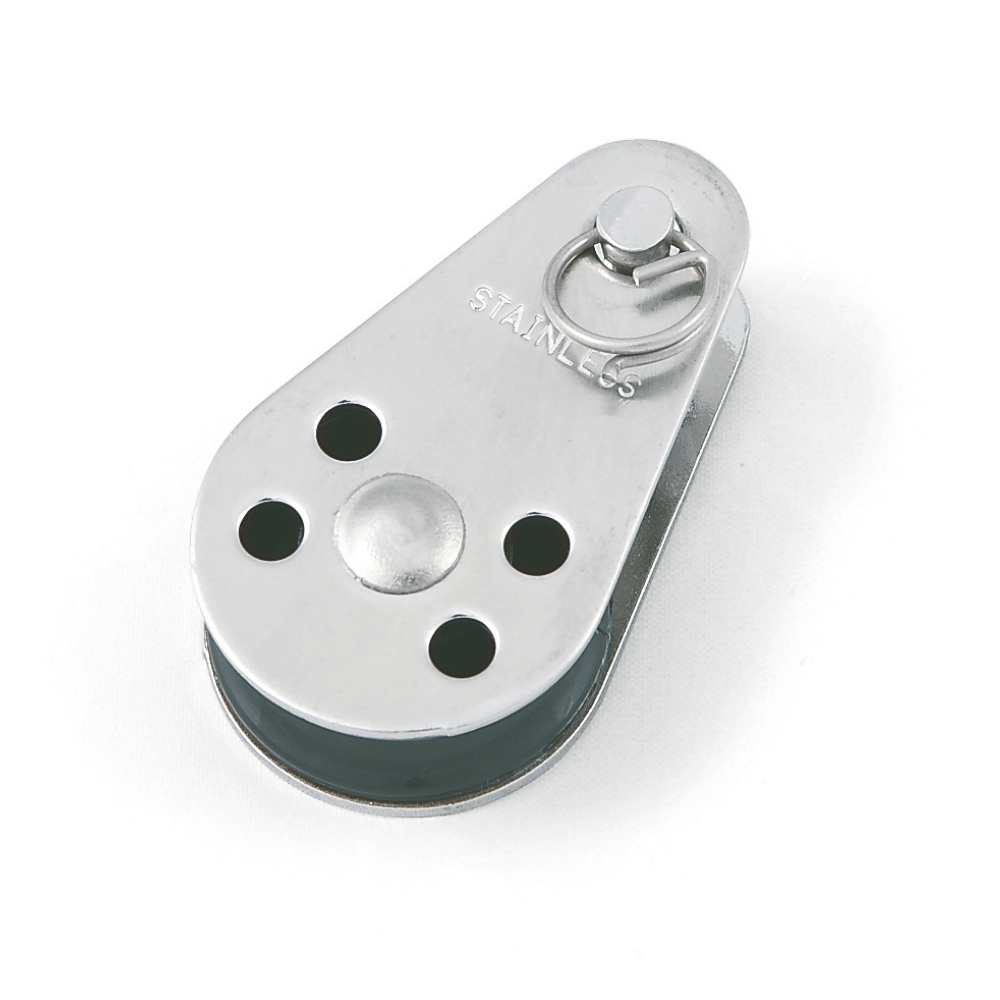

Removable-pin blocks
Removable-pin blocks for professional supply. Compare attachment, sheave and dimensions across the listed variants and include the installation requirements in your enquiry.
- Material
- AISI 304 / A2
- Sheave
- Nylon
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale. Indicative loads reported in the article data sheet; characteristics may vary between batches. Breaking load is not working load.
- A
- outside width in side view
- B
- body width in front view
- D
- inside groove width
- H
- outside sheave diameter
- L
- indicated overall length
- Cavo
- rope diameter
Variants and dimensional data
| A (mm) | B (mm) | D (mm) | H (mm) | L (mm) | Rope (mm) | Indicative catalogue working load (kg) | Breaking load (kg) | RFQ |
|---|---|---|---|---|---|---|---|---|
| 25 | 12,5 | 6,5 | 25 | 45 | 6 | 87,5 | 350 |
Materials and finishes
- Material
- AISI 304 / A2
- Sheave
- Nylon
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Working load and breaking load are separate ratings. The values shown do not constitute lifting certification; verify the service conditions for the selected variant.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
