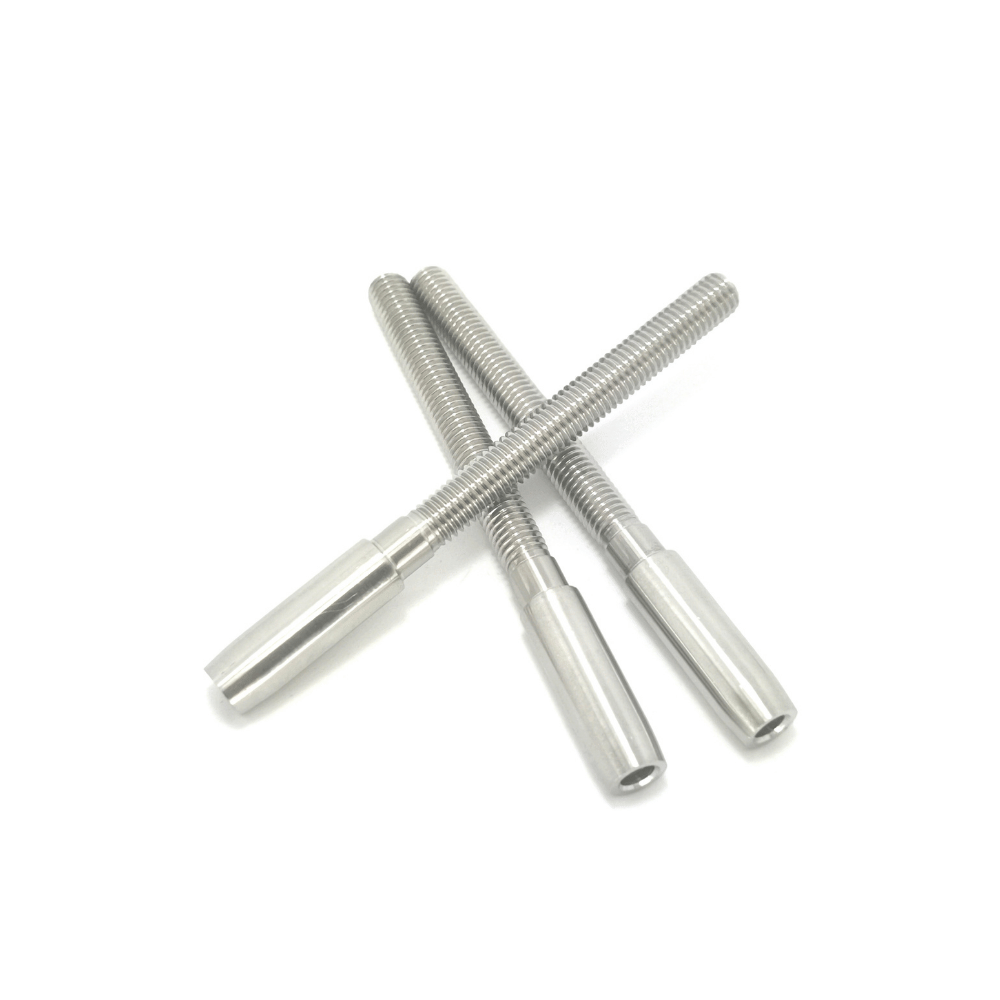

Long-stud Left-hand mini swage terminals
Long-stud Left-hand mini swage terminals in AISI 316 stainless steel. Compare interfaces and dimensions for the required configuration.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm, except metric thread M. Illustrative drawing, not to scale. Swage-terminal dimensions apply before processing.
Technical drawing
D: left-hand metric thread (LH); D1: tube outside diameter; D2: rope bore; L: overall length; L1: rope insertion length; L2: threaded length. Smooth polished finish. L1 and L2 refer to this drawing: do not confuse them with standard-terminal labels. Possible elongation up to 10% after swaging.
Variants and dimensional data
| Rope Ø (mm) | D thread | D1 (mm) | D2 (mm) | L (mm) | L1 (mm) | L2 (mm) | Thread hand | RFQ |
|---|---|---|---|---|---|---|---|---|
| 4 | M6 | 7,5 | 4,3 | 90 | 25 | 60 | LH | |
| 5 | M8 | 9,5 | 5,3 | 100 | 31 | 60 | LH | |
| 6 | M10 | 12,5 | 6,4 | 125 | 37 | 80 | LH |
Verify rope, terminal, attachment and tooling compatibility. Dimensions do not establish an assembly load rating.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
Request a quote
Long-stud Left-hand mini swage terminals
