5.5° male end handrail support

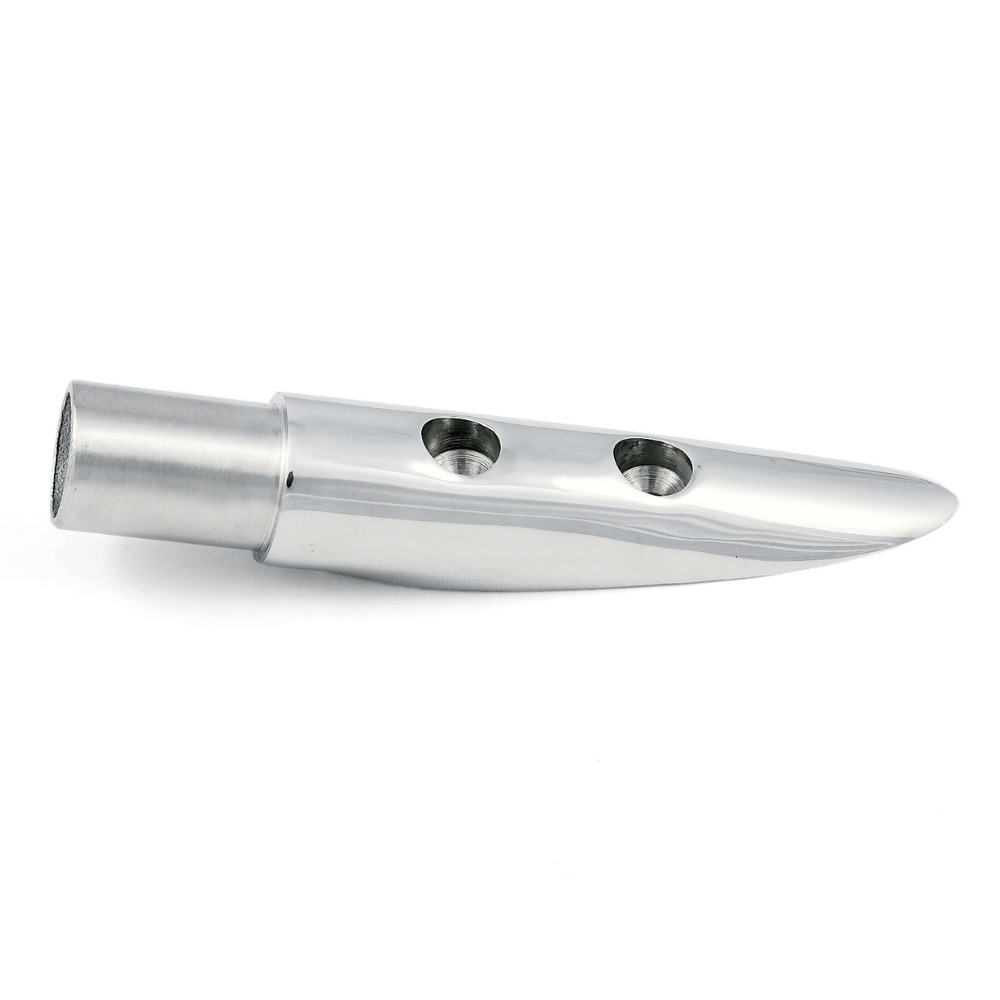

5.5° male end handrail support in investment-cast, polished AISI 316 stainless steel. Compare geometry, tube fit and dimensions before selection.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale. Check the delivered product before drilling.
Technical drawing
D: male-spigot outside diameter; D1: body outside diameter at the shoulder; L: overall length. Inclination 5.5°. Verify tube inside diameter and fixing-hole pattern.
Variants and dimensional data
| D (mm) | D1 (mm) | L (mm) | RFQ |
|---|---|---|---|
| 19 | 22,5 | 120 |
Dimensions may vary between batches. Socket or spigot diameter differs from nominal tube diameter; verify the fit.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
Request a quote
5.5° male end handrail support
