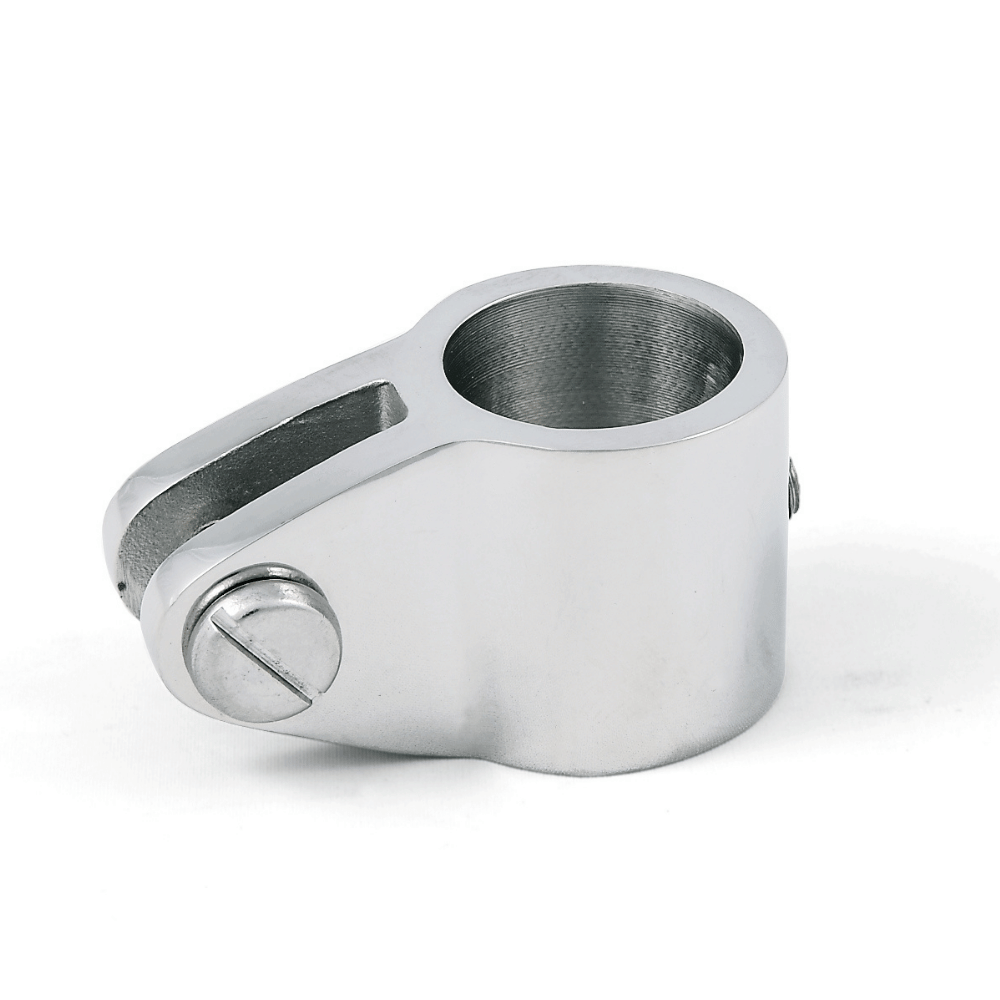

Bimini jaw slides
Bimini jaw slides in polished AISI 316 stainless steel. Compare configuration, diameters and dimensions for bimini installation.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm, except threads. Illustrative drawing, not to scale. Verify the component and mating parts before drilling or assembly.
Technical drawing
For tube Ø: nominal size; D: tube socket; D1: collar outside diameter; L: overall length; L1: tube-to-pin centre distance; D2: fork screw; D3: set screw; H: body height; H1: top-edge-to-set-screw centre distance; W: jaw opening; W1: outside jaw width.
Variants and dimensional data
| For tube Ø (mm) | L (mm) | L1 (mm) | D (mm) | D1 (mm) | D2 (thread) | D3 (thread) | H (mm) | H1 (mm) | W (mm) | W1 (mm) | RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 48 | 27 | 20,5 | 26 | M6 | M6 | 25 | 12,5 | 7,5 | 15,0 | |
| 22 | 51 | 28 | 22,5 | 28 | M6 | M6 | 28 | 14 | 7,5 | 15,0 | |
| 25 | 56 | 32 | 25,6 | 31 | M6 | M6 | 28 | 14 | 7,5 | 15,0 | |
| 30 | 67 | 37 | 30,6 | 36,5 | M6 | M6 | 28 | 14 | 7,5 | 15,5 |
Indicative dimensions of the documented configuration; subject to batch variations. Check compatibility and fastening on the delivered product. Source tolerances: L/L1/D1/H/H1/W1 ±5%; D ±0.2 mm; W −0.05/+0.15 mm.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
