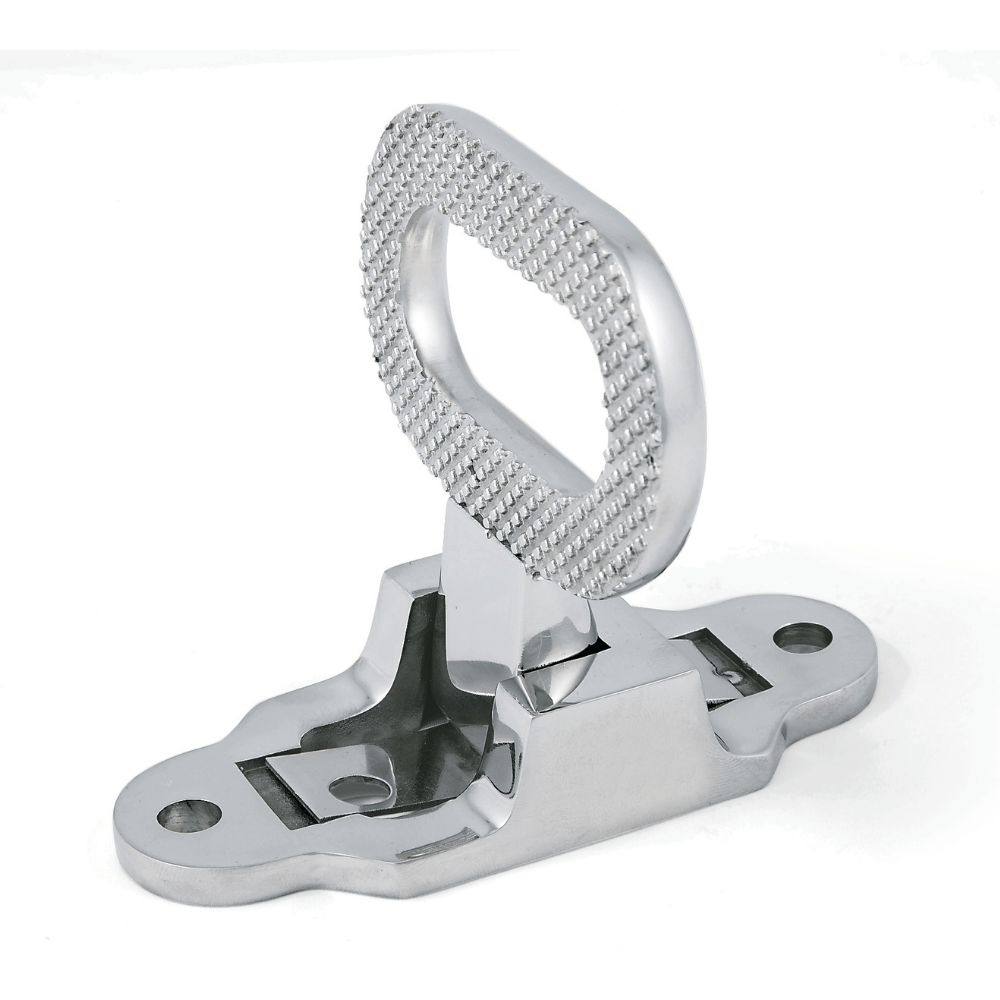

Folding steps
Folding steps for professional supply. Compare geometry and installation dimensions across the listed variants and include the installation requirements in your enquiry.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale; check dimensions on the delivered product before drilling. Hole dimensions and load rating are not specified in the source and must be confirmed.
- B
- folding element width in plan
- E
- mounting base length
- E1
- hole centre distance
- F
- mounting base width
- L
- folding element length in plan
Variants and dimensional data
| B (mm) | E (mm) | E1 (mm) | F (mm) | L (mm) | RFQ |
|---|---|---|---|---|---|
| 50 | 110 | 90 | 47,5 | 85 |
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
