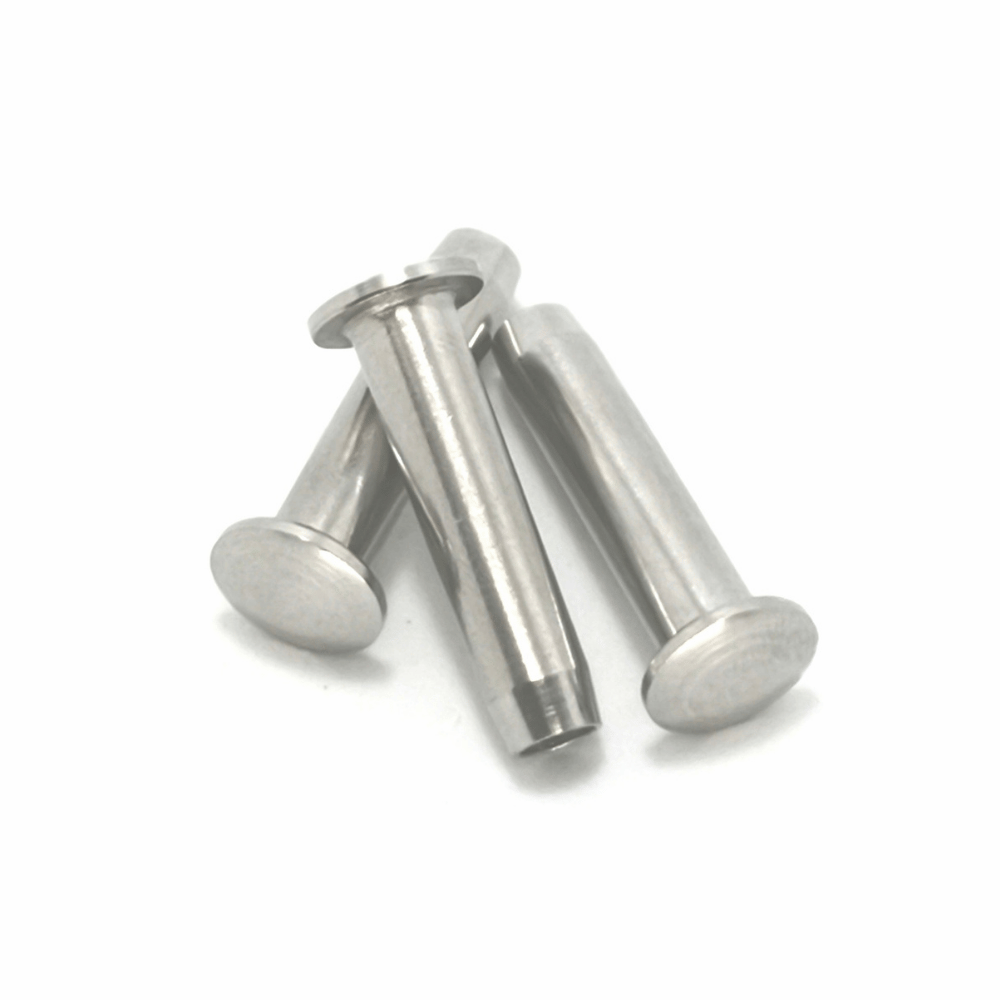

Dome-head swage terminals
Dome-head swage terminals in AISI 316 stainless steel. Compare interfaces and dimensions for the required configuration.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm, except metric thread M. Illustrative drawing, not to scale. Swage-terminal dimensions apply before processing.
Technical drawing
D1: tube outside diameter; D2: rope bore; D3: head diameter; L1: overall length; L2: bore depth; L3: head thickness. The source excludes B12 tool dies for these terminals because of their thin tube wall. Confirm suitable tooling and process.
Variants and dimensional data
| Rope Ø (mm) | D1 (mm) | D2 (mm) | D3 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | RFQ |
|---|---|---|---|---|---|---|---|
| 3 | 5,5 | 3,2 | 9 | 25 | 18 | 2 | |
| 4 | 6,5 | 4,3 | 11 | 30 | 24 | 2 | |
| 5 | 7,5 | 5,3 | 13 | 35 | 28 | 2,5 | |
| 6 | 9 | 6,4 | 16 | 40 | 32 | 3 |
Verify rope, terminal, attachment and tooling compatibility. Dimensions do not establish an assembly load rating.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
