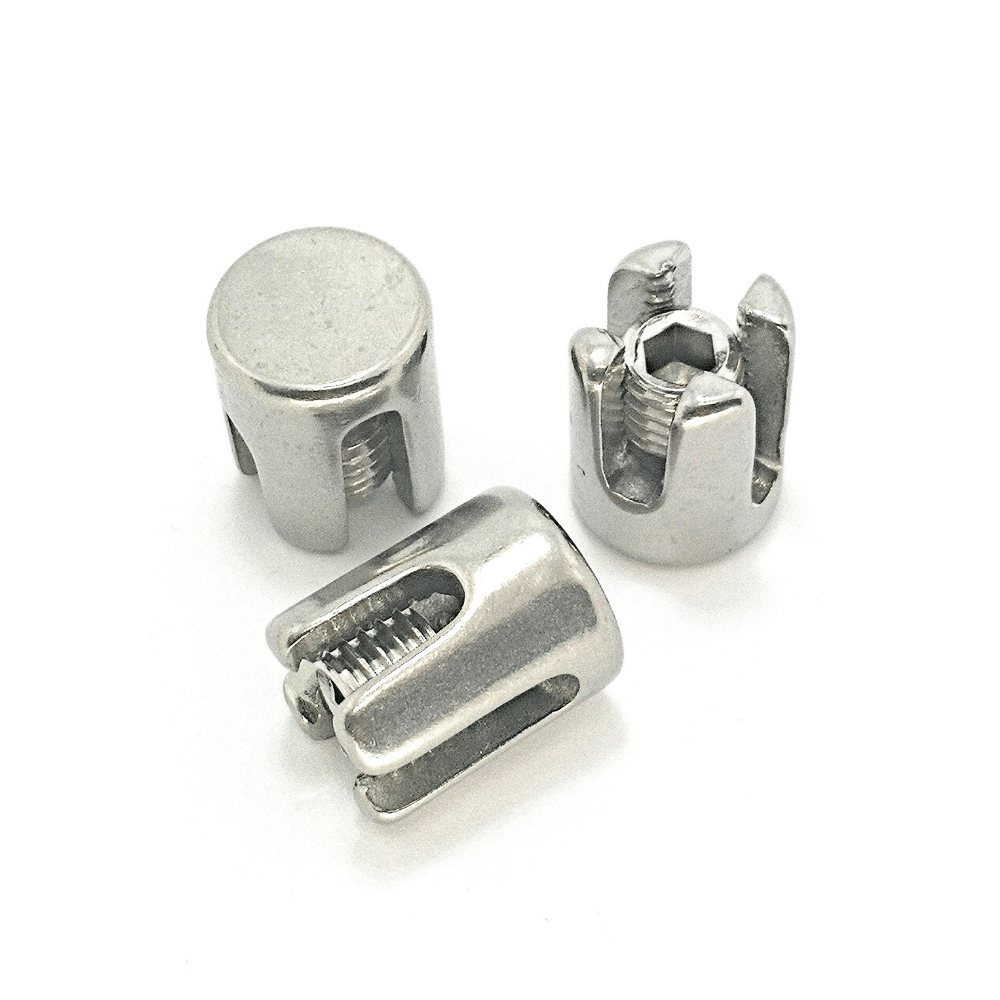

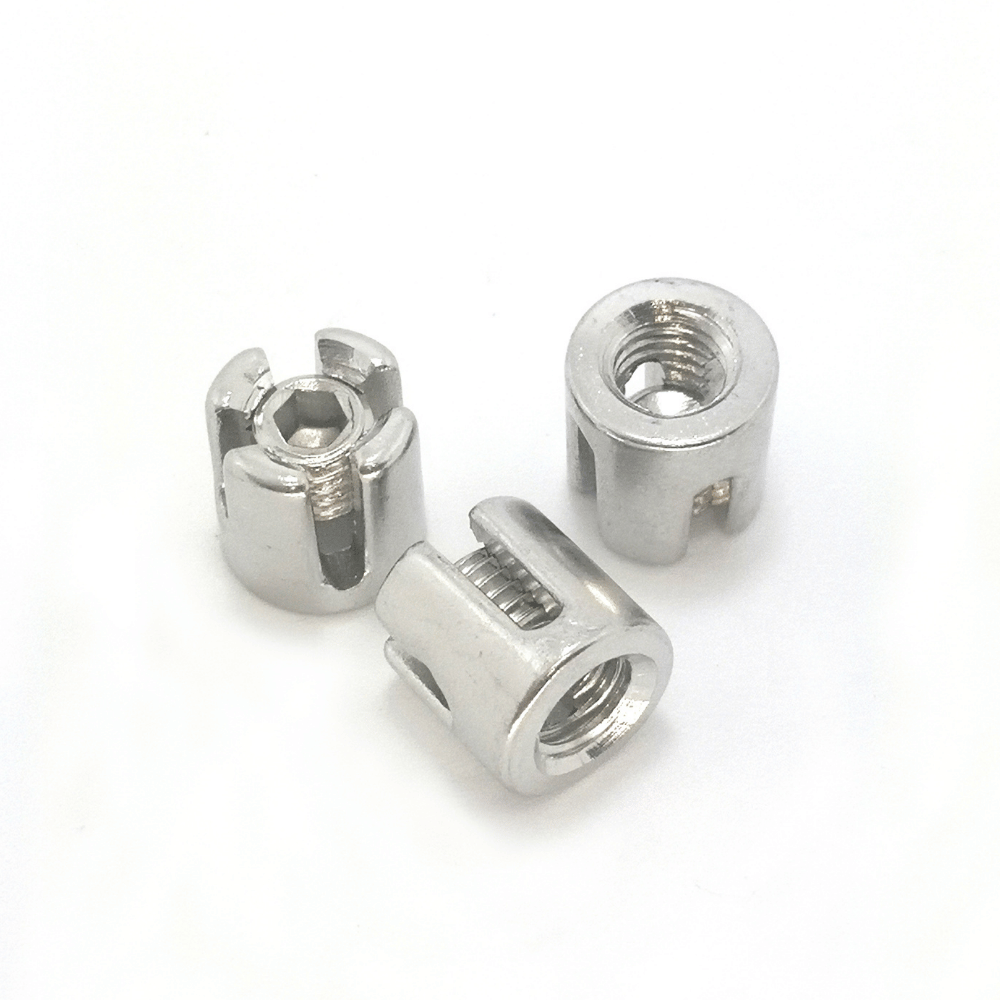

Cylindrical cross clamps
Cylindrical cross clamps in AISI 316 stainless steel. Compare rope diameter, dimensions and configurations in the table.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm, except metric thread M. Illustrative drawing, not to scale. Confirm dimensions and configuration in the enquiry.
Technical drawing
m: internal thread; h: overall height; b: passage width; d: outside diameter. Set screw: thread × length. Polished body with closed bottom. Original drawing dimension h1 is not tabulated and is not inferred. Verify fixing compatibility and assembly strength.
Variants and dimensional data
| Rope Ø (mm) | m thread | h (mm) | b (mm) | d (mm) | Set screw | RFQ |
|---|---|---|---|---|---|---|
| 2 | M12 | 19 | 2,5 | 20 | M12×10 | |
| 3 | M12 | 19 | 3,5 | 20 | M12×10 | |
| 4 | M12 | 21 | 4,5 | 20 | M12×10 | |
| 5 | M12 | 23 | 5,5 | 20 | M12×10 | |
| 6 | M12 | 25 | 6,5 | 20 | M12×10 |
Indicative dimensions, subject to production variations. The table does not establish a load rating for the clamp or assembly.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
