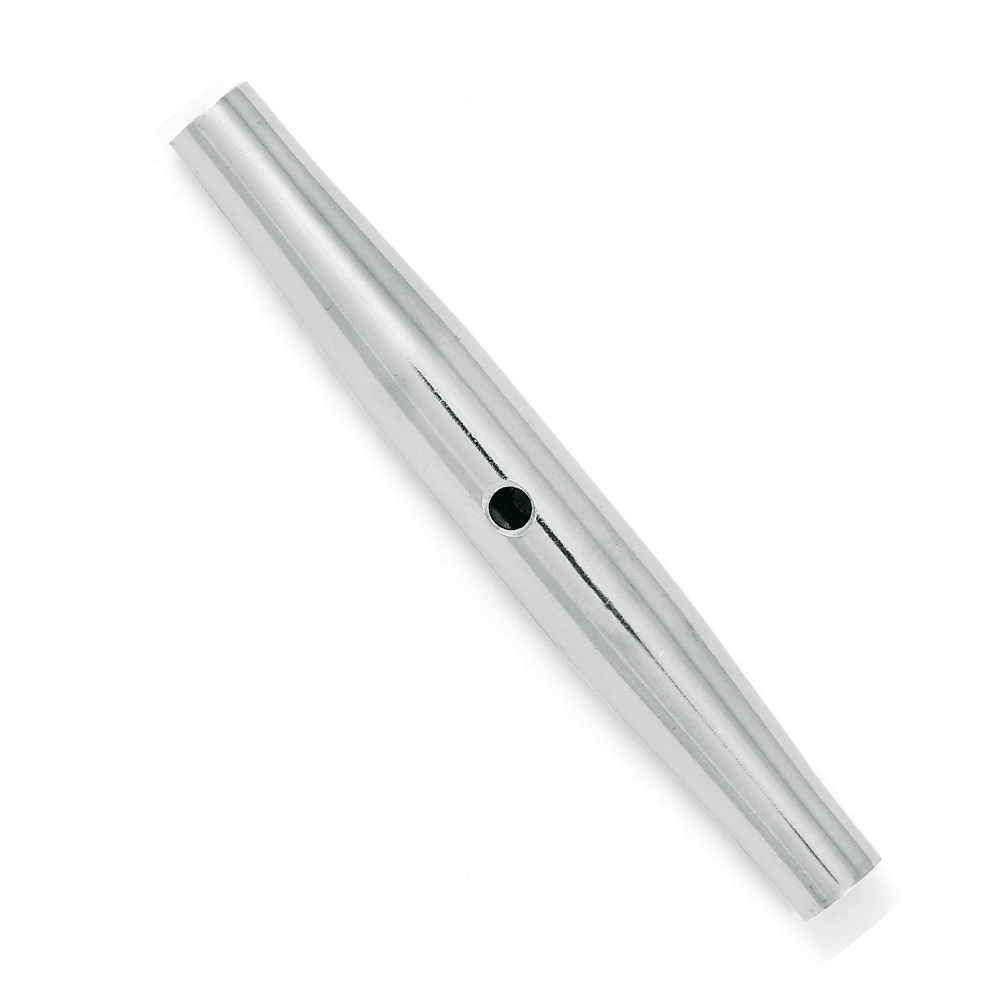

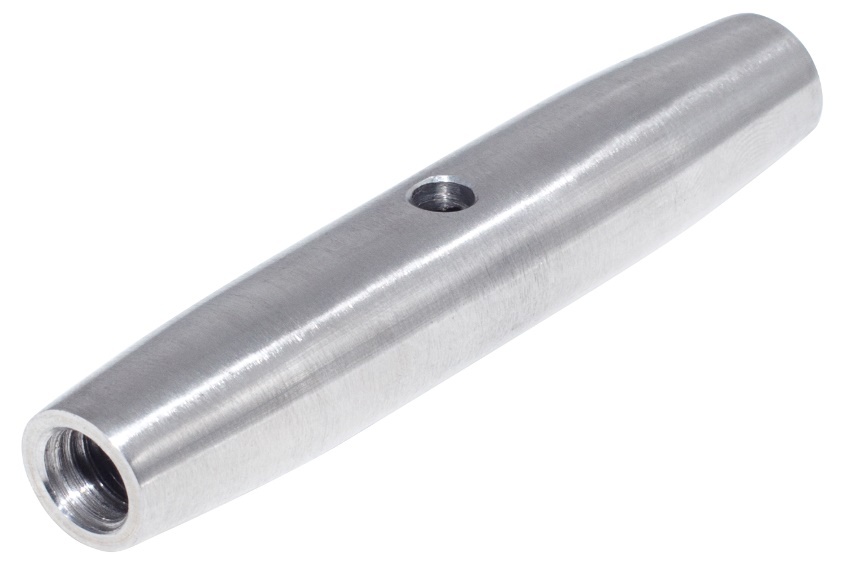

Closed turnbuckle bodies
Closed turnbuckle bodies in AISI 316 stainless steel. Compare dimensions and end fittings before enquiring.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm, except metric thread M. Illustrative drawing, not to scale. Verify dimensions on the delivered product.
Technical drawing
D1: internal threads; L: body length; D2: outside diameter. Body supplied without ends. Confirm the right/left thread pair, engagement and compatible end fittings in the enquiry; no load rating is derived from diameter.
Variants and dimensional data
| D1 thread | L (mm) | D2 (mm) | RFQ |
|---|---|---|---|
| M6 | 95 | 10 | |
| M8 | 105 | 13 | |
| M10 | 125 | 17 | |
| M12 | 150 | 21 | |
| M16 | 190 | 26,5 |
Any load values shown are as reported by the source, not assembly certification. Products are not intended for lifting or fall protection. Verify configuration, thread engagement and service conditions.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
