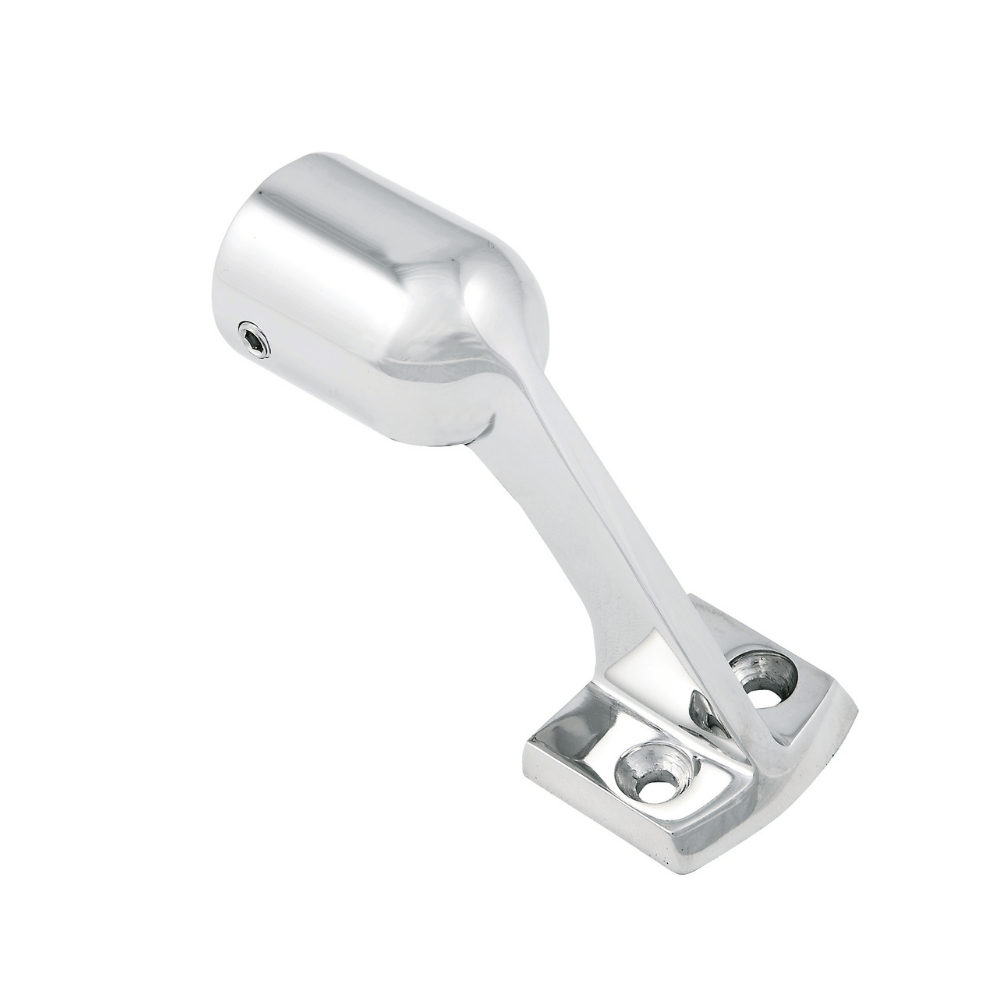

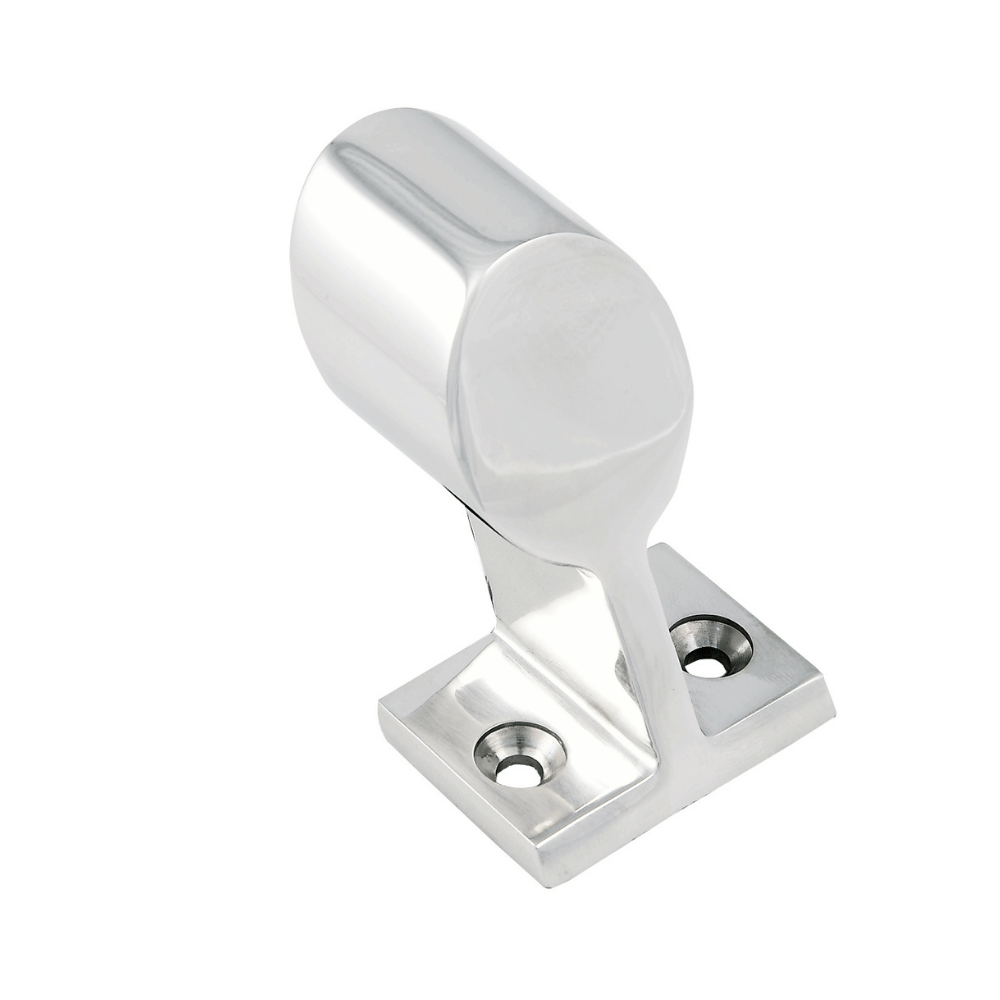

60° end handrail supports
60° end handrail supports in investment-cast, polished AISI 316 stainless steel. Compare geometry, tube fit and dimensions before selection.
- Material
- AISI 316 / A4
Technical drawing
Dimensions in mm. Illustrative drawing, not to scale. Check the delivered product before drilling.
Technical drawing — Type A
A: base width; B: base depth; D1: tube socket; D2: collar outside diameter; H: height from mounting plane to tube centreline. B1: upper collar length in side view. Ø5.3 holes with Ø10 countersinks. Support inclination 60°. Closed end socket.
Technical drawing — Type B
A: base width; B: base depth; D1: tube socket; D2: collar outside diameter; H: height from mounting plane to tube centreline. B1 is not dimensioned for this version. Ø5.3 holes with Ø10 countersinks. Support inclination 60°. Closed end socket.
Variants and dimensional data
| Type | A (mm) | B (mm) | B1 (mm) | D1 (mm) | D2 (mm) | H (mm) | RFQ |
|---|---|---|---|---|---|---|---|
| A | 40 | 26 | 20 | 23 | 28,5 | 37 | |
| A | 42 | 29 | 23 | 26 | 31,5 | 40 | |
| B | 35 | 31 | — | 22,5 | 29 | 52 |
Dimensions may vary between batches. Socket or spigot diameter differs from nominal tube diameter; verify the fit.
Materials and finishes
- Material
- AISI 316 / A4
Material of the documented configuration. Specify supply conditions and finishes in the enquiry.
Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.
