DADI DAX® CIECO

Come elemento frenante i dadi DAX®  impiegano un inserto in acciaio inossidabile AISI 301. Durante l’avvitamento l’inserto subisce una deformazione elastica e si adagia sul fanco della flettatura della vite, esercitando una forza suffciente a garantire un’adeguata coppia frenante e un’ottima resistenza  nelle applicazioni con forti vibrazioni e sollecitazioni dinamiche.

L’inserto, dopo la deformazione causata dall’avvitamento, ritorna nella sua forma primitiva, consentendo ripetuti avvitamenti e svitamenti, con una ridotta diminuzione dei valori della coppia frenante. Lo sforzo in avvitamento è limitato e comunque molto inferiore a quello richiesto per altri tipi di dadi autofrenanti.
I dadi Dax resistono a temperature da -50° a +300° C

The locking device of the DAX nuts is an AISI 301 stainless steel insert. During tightening, the insert  undergoes elastic deformation and adapts itself to the flank of the screw thread, exerting a force that is suffcient to ensure an adequate prevailing torque and a high resistance in applications with strong vibrations and dynamic stress.

The insert, after deformation by screwing, returns to its original shape, allowing repetitive reuses with a slight reduction of the prevailing torque values. The tightening force needed is small and certainly much less than what required by other types of selflocking nut. The Dax nuts can withstand temperatures of -50° to
+300° C

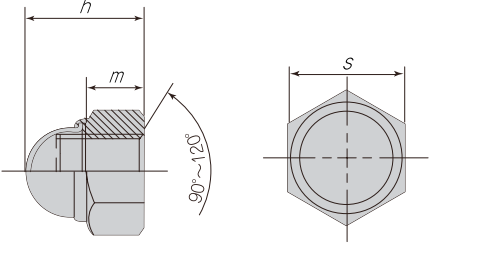

FILETTATURA METRICA A PASSO GROSSO / PASSO FINE

Metric Coarse Pitch Thread / Metric Fine Pitch Thread

Descrizione

Passo grosso  Passo fine  Codice passo grosso Codice passo fine
5 0,8 8 9 3,9 DB05CN1W
6 1 10 10,5 4,2 DB06CN1W
8 1,25 13 13 6,1 DB08CN1W
10 1,5 1,25 17 15,5 7,1 DB10CN1W DB10CF1W
12 1,75 1,25 19 19 9 DB12CN1W DB12CF1W
14 2 1,5 22 24,5 11 DB14CN1W DB14CF1W
16 2 1,5 24 26,5 13 DB16CN1W DB16CF1W
18 2,5 1,5 27 28,5 14 DB18CN1W DB18CF1W
20 2,5 1,5 30 31 15,4 DB20CN1W DB20CF1W

MATERIALI: ACCIAIO CL.8 / ACCIAIO CL. 10 (≥M 6)/ INOX 304 –  nb L’inserto frenante è sempre in acciaio inox AISI 301 / The locking insert is always in AISI 301 stainless steel

FINITURE: ZINCATURA BIANCA Cr3, spessore 7µ
